ISO/PAS 8800 and ISO 26262: how AI safety integrates with traditional functional safety

Key takeaways

• ISO/PAS 8800 ISO 26262 integration is not a separate workstream. PAS 8800 extends the ISO 26262 lifecycle to AI/ML components rather than replacing any of its clauses; safety-managers should plan it as an overlay, not a parallel track.
• The dataset V-model is the new artifact class. PAS 8800 introduces a dataset lifecycle that mirrors the system V-model and feeds the ISO 26262 verification and validation activities.
• The safety case carries both standards in one argument. A combined safety case must cite ISO 26262 work products (HARA, FSC, TSC) and PAS 8800 work products (data specification, model performance bounds, field-monitoring plan) under one assurance argument.
• SOTIF (ISO 21448) is the connective tissue. Triggering conditions for AI-driven perception belong inside the SOTIF analysis, not invented separately for PAS 8800.
• Field monitoring is now part of release. Under PAS 8800, the field-monitoring dataset and its operations plan are release deliverables, not post-launch nice-to-haves.

The integration question every functional safety manager is now being asked

If your program uses machine learning in a safety-related function, your next ISO 26262 (Road vehicles: Functional safety) audit cycle will include a question that did not exist two years ago: how does your AI component satisfy a published safety standard, and who owns the artifacts?

ISO/PAS 8800 (Road vehicles: Safety and artificial intelligence) is the answer that the standards community has converged on. Published in 2024, it is a Publicly Available Specification that defines the safety lifecycle for AI inside road vehicles. It is not a replacement for ISO 26262, ISO 21448 (SOTIF), or ISO/SAE 21434 (cybersecurity). It is an overlay that plugs into all three. The integration work is now the job.

Why this matters now

Three forces have made this an immediate problem rather than a 2027 problem.

First, regulators. UN Regulation 157 (Automated Lane Keeping Systems), which entered into force in January 2021, already requires a documented safety strategy, continuous system monitoring, and robust cybersecurity for ADS-equipped vehicles. National type-approval bodies are starting to ask for PAS 8800-shaped evidence in dossiers for ML-containing components, even before the document formally promotes from PAS to full International Standard.

Second, OEM supplier scorecards. Tier-1 suppliers shipping perception, sensor-fusion, or driver-monitoring components into 2026 and 2027 model-year programs are being asked to attest to a PAS 8800-aligned development process. The attestation is becoming a gate, the way ASPICE (Automotive Software Process Improvement and Capability Determination) Level 2 became a gate a decade ago.

Third, the safety case auditors themselves. Functional safety assessors trained on ISO 26262 cannot sign off an ML-containing item under the 26262 lifecycle alone, because ISO 26262 was scoped to deterministic systems. PAS 8800 closes the scope gap.

What does ISO/PAS 8800 actually add to ISO 26262?

PAS 8800 does not duplicate ISO 26262. It adds AI-specific work products at three lifecycle stages.

At the concept phase. PAS 8800 requires AI-specific hazards and triggering conditions to be enumerated alongside the ISO 26262 HARA (Hazard Analysis and Risk Assessment). Distributional shift, adversarial inputs, and rare-event failure modes are now first-class items in the hazard list, not afterthoughts.

At the development phase. PAS 8800 introduces the dataset V-model as an artifact peer to the system V-model. Training, validation, test, production, and field-monitoring datasets each carry specification, verification, and traceability requirements. This is where most teams will spend the bulk of new effort.

At the operation phase. PAS 8800 mandates a field-monitoring plan with a defined dataset and a defined response process for performance drift. ISO 26262 has nothing equivalent at this clause depth; PAS 8800 fills the gap.

The integration cost is real but bounded. Programs that already run a disciplined ISO 26262 lifecycle typically find that PAS 8800 extends the lifecycle with a small number of new artifact families at each phase (most visibly the dataset specification and the field-monitoring plan) rather than rebuilding it.

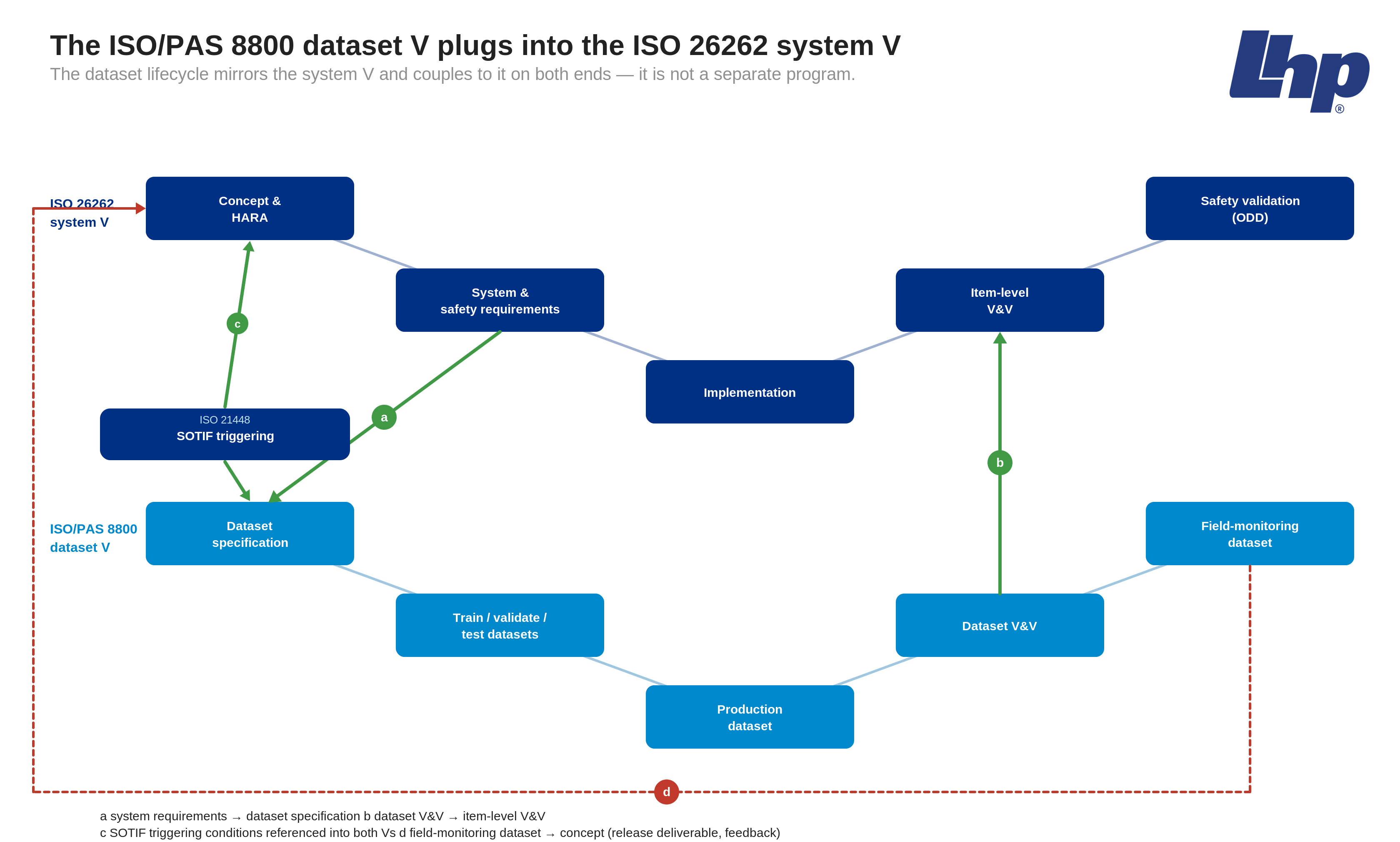

Where does the dataset V-model plug into the system V-model?

The most common implementation mistake is treating the dataset lifecycle as a separate program. It is not. The dataset V is anchored on both ends to the system V.

On the left side, the dataset specification flows from the system requirements and the functional safety requirements. A perception function with an ASIL-B (Automotive Safety Integrity Level B) classification places direct, traceable constraints on what the training dataset must contain: operating design domain coverage, edge-case scenario density, and label-quality thresholds.

On the right side, the dataset verification and validation activities feed the ISO 26262 item-level verification and validation. The test dataset is one input to the verification of the AI component; the production dataset characterizes the operating envelope that scenario-based testing must cover.

In a recent LHP piece on PAS 8800 (explainer link), an LHP functional safety expert noted that PAS 8800 introduces five primary dataset types: training, validation, test, production, and field-monitoring. Each of these maps to a specific verification activity in the system V. The integration mistake to avoid is treating any of them as data-science deliverables disconnected from the safety case.

For working engineers, the practical question is: which dataset row of the traceability matrix feeds which verification activity? The answer is non-negotiable for audit. A traceability tool ALM (Application Lifecycle Management) practice that already handles ISO 26262 work products usually needs an extension, not a replacement, to carry dataset-V artifacts.

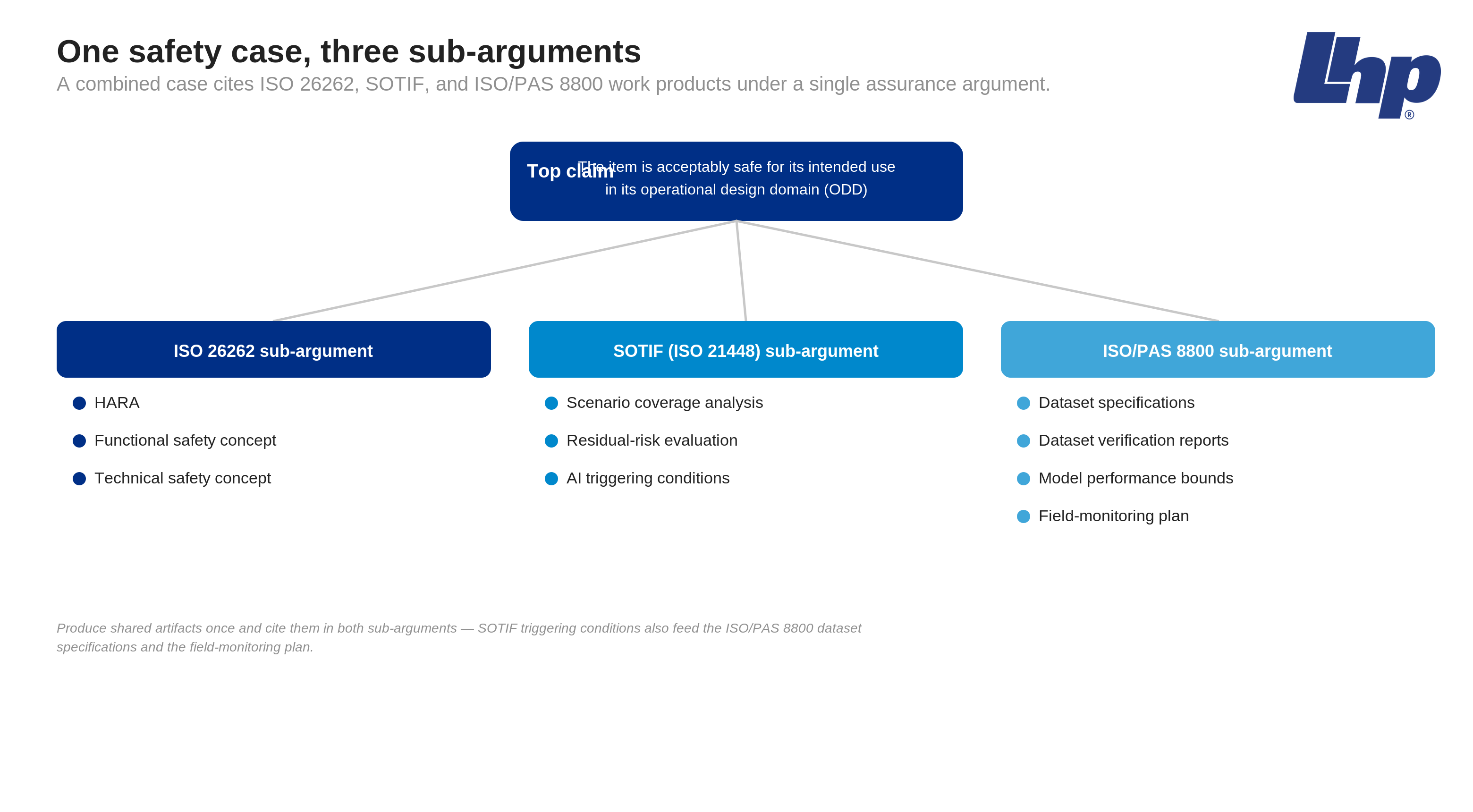

How do you build a safety case that satisfies both standards?

A combined safety case is one argument, not two. The structure that auditors are starting to expect:

1. Top claim. The item is acceptably safe for its intended use in its operational design domain.
2. ISO 26262 sub-argument. The functional safety lifecycle (concept, system, hardware, software) supports the top claim for deterministic behavior. Evidence: HARA, FSC (Functional Safety Concept), TSC (Technical Safety Concept), confirmation reviews, FSA (Functional Safety Assessment).
3. ISO 21448 sub-argument. The SOTIF lifecycle supports the top claim against insufficiencies of specification, including AI-driven triggering conditions. Evidence: scenario coverage analysis, residual risk evaluation.
4. PAS 8800 sub-argument. The AI safety lifecycle supports the top claim for the ML components. Evidence: dataset specifications, dataset verification reports, model performance bounds, monitoring plan.

The unifying logic is Goal Structuring Notation (GSN) or a comparable structured assurance argument. The mistake is to attach the PAS 8800 evidence as an appendix and hope the auditor reads it. Auditors trained on the 2024 PAS 8800 release expect the AI sub-argument to be cited inline at every node where an AI component is in the safety-relevant control path.

What changes for SOTIF and field monitoring?

SOTIF (ISO 21448) was written knowing AI would be in scope but predates PAS 8800. PAS 8800 sharpens what SOTIF asked for.

Triggering conditions for an AI perception function, such as fog density, low-sun angle, novel object class, and sensor degradation, were already SOTIF artifacts. PAS 8800 now requires those same triggering conditions to also be reflected in the dataset specifications and the field-monitoring plan. The same artifact is referenced from two standards; produce it once, cite it twice.

Field monitoring is the larger change. ISO 26262 release activities assume the released item behaves the same in week one and week one hundred. PAS 8800 does not. The standard mandates a field-monitoring dataset, a drift-detection protocol, and a defined response process. A safety manager who treats this as a post-launch operations problem is exposed at the next audit cycle. It is a release deliverable.

How LHP approaches integrated AI + FuSa programs

LHP runs integrated PAS 8800 and ISO 26262 engagements as a single safety-lifecycle program, not two parallel ones. The engagement model:

• Phase 0 assessment. Map the existing ISO 26262 artifacts against the PAS 8800 artifact set. Identify the artifact families that already exist, the ones that need extension, and the genuinely new ones (typically dataset specification and field-monitoring plan).
• Combined safety case scaffold. Stand up a single GSN-style safety case at the program start. Every artifact lands inside it from day one.
• ALM tooling extension, not replacement. Most programs already carry ISO 26262 work products in a tool like Jama, Polarion, or DOORS. PAS 8800 artifacts plug into the same traceability spine.
• FSCAE-trained team. LHP's Functional Safety Certified Automotive Engineer (FSCAE) program produces FuSa engineers who are now also trained on PAS 8800 integration patterns.

The detail is in LHP's ISO 26262 consulting capability page and in the responsible-AI-for-automotive companion piece on the blog.

What this means for your next program

If your next program contains any AI component on a safety-relevant control path, three actions belong on your plan-on-a-page this quarter:

1. Audit the artifact gap. A two-week gap analysis between your current ISO 26262 artifact set and the PAS 8800 artifact set is enough to scope the integration cost.
2. Decide the safety case structure now. Retro-fitting a combined safety case at SOP minus six months is the most expensive way to do it.
3. Make field monitoring a release gate, not a launch follow-up. The field-monitoring plan is the artifact most often missed at first audit; planning it in at concept is almost free.

The PAS-to-full-IS promotion will happen on the standards committee's clock. The programs that move now will hit the regulatory inflection with the lifecycle already in place.

Frequently asked questions

Is ISO/PAS 8800 mandatory?

Not yet. ISO/PAS 8800 is a Publicly Available Specification published in 2024, not a full International Standard. It will likely promote to ISO 8800 within the next two to three standards-cycle years. In practice, OEM scorecards and type-approval dossiers are already asking for PAS 8800-aligned evidence, which means it functions as a de facto requirement for any Tier-1 supplier shipping ML-containing safety-related components into 2026 model-year and later programs.

Does ISO/PAS 8800 replace ISO 26262 for AI components?

No. PAS 8800 is explicitly designed as an overlay on the ISO 26262 lifecycle, not a replacement. The ISO 26262 concept phase, system development, hardware development, and software development clauses still apply to the surrounding deterministic system. PAS 8800 adds AI-specific work products at the concept, development, and operation phases. The safety case is a single argument that cites both standards.

What is the dataset V-model in ISO/PAS 8800?

The dataset V-model is a lifecycle structure that PAS 8800 introduces for the data used to train, validate, test, deploy, and monitor an AI/ML component. It mirrors the well-known system V-model. The five primary dataset types it names are training, validation, test, production, and field-monitoring. Each dataset type carries a specification, a verification activity, and a traceability link to the system-level safety requirements and the functional safety requirements.

How does ISO/PAS 8800 relate to SOTIF (ISO 21448)?

SOTIF and PAS 8800 are complementary. SOTIF covers safety insufficiencies caused by the intended functionality, including triggering conditions for AI perception. PAS 8800 sharpens the SOTIF requirements by mandating that triggering conditions be reflected in dataset specifications and the field-monitoring plan. The two standards typically share artifacts at the triggering-condition layer; produce the artifact once and cite it in both sub-arguments of the combined safety case.
